Op-xy + tx6 (split tracks)

[RomanMester]

Hi guys!
I have a question that I can’t seem to find a clear answer to.

I have an OP-XY. Is it possible to route some tracks from the OP-XY to one assignable or programmable audio output going into the TX-6, and route the remaining tracks to another input on the TX-6?

In other words, can I split the 8 tracks of the OP-XY into two groups:
one group going into one channel of the mixer, and the other group going into a different channel of the mixer?

This way, I could process one group of tracks with the OP-XY’s internal effects, and process the other group with the mixer’s effects, and then mix them together.

Is this possible with just an OP-XY and a TX-6?

Thanks!

[instantjuggler]

yes you can easily do this. op-xy has a main output, it also has another jack that can output audio, and it has an input jack. you could route a bunch of xy tracks out through the multijack on the xy with it set to audio output and run them into one channel input on tx-6. you can process those tracks with tx-6 effects, essentially using tx-6 as an effects pedal in an effects send loop. run those tracks back into the xy and do the final mix in the xy while processing the other tracks not going through the tx-6 with the xy effects.

[RomanMester]

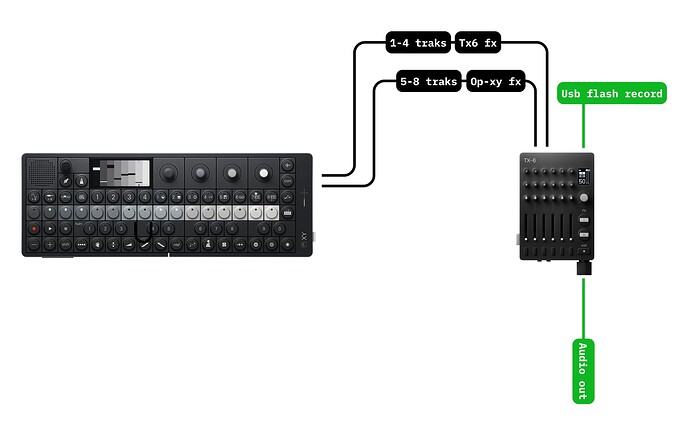

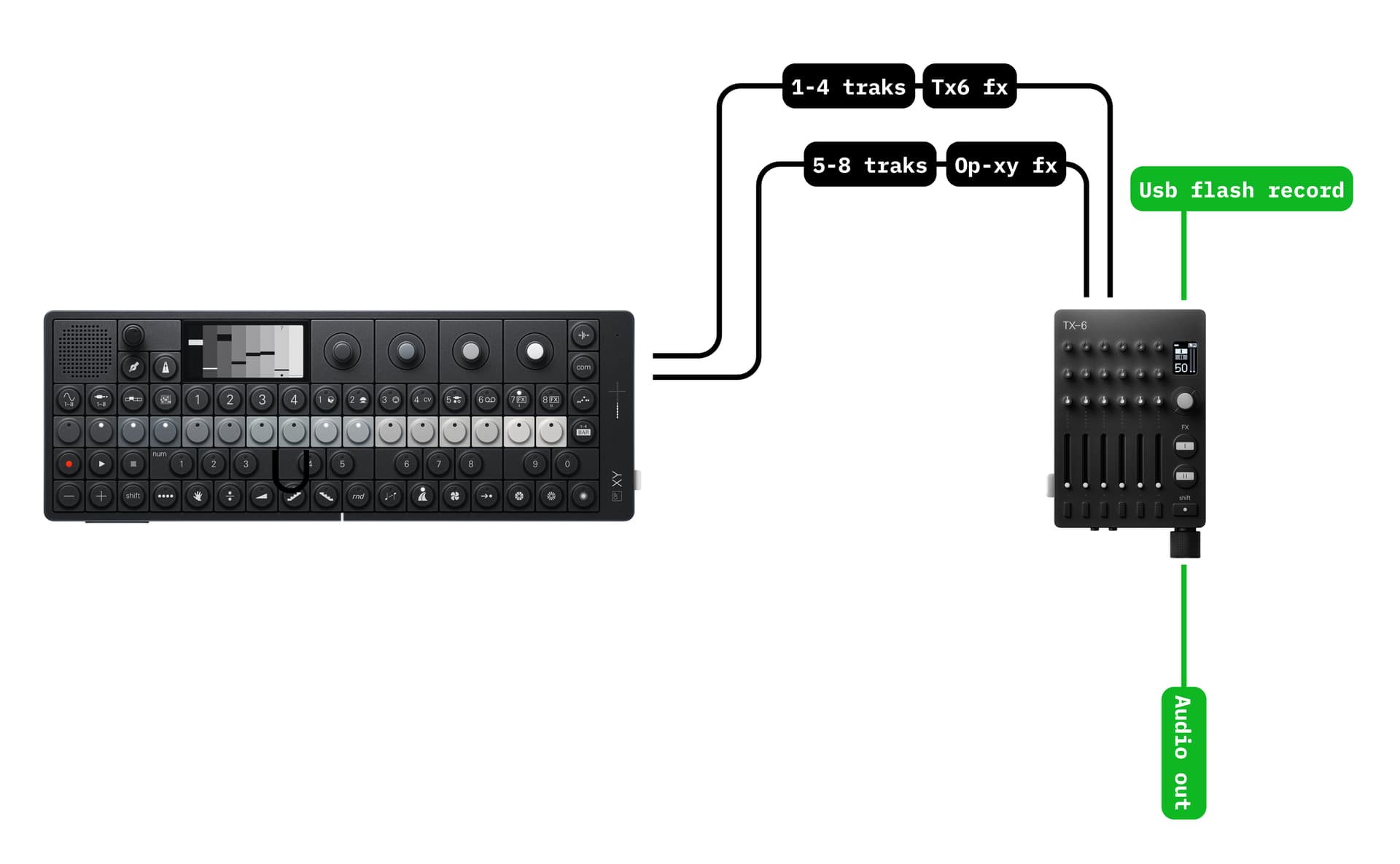

Or don’t return it, but do it like this
