PO hacks

i adore this topic :smiling_face_with_three_hearts:

some time ago i made this module for my po

its bluetooth audio in and illuminating for keypad.
handy because you can use po as a bluetooth , and take samples prom it. illuminating lantern helps in the dark.

i got this unit and took it apart


made it into like a small module that fits po


rotates 180

added some bling and red glow

added a small lamp from christmas lights that can bend with out barking

and this is how it looks in complete dark.
the light is strong. i got inspiration from a mixing table i have seen in the theatre.

Very cool! Well done!

In one of the pictures it seems like the PO display has a green backlighting, but I guess not, right?

thanks punji🙏
i think your research on this topic po hacks is amazing !

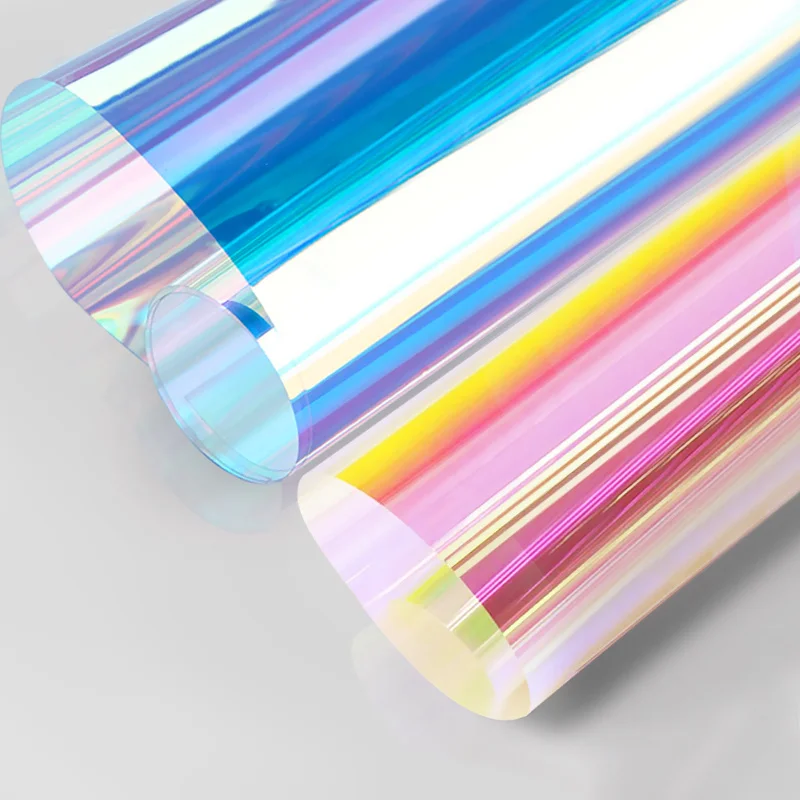

and im using this multi color film as screen protector for po’s


€ 2,56 50% Off | Colorful Glass Stickers Rainbow Effect Iridescent Window Tint Decorative Window Films For Home Office Heat Control Anti UV

it looks kinda like a hologram, gives po bit cyberpunk feel.

Hi Punji,

Years after talking about it, I actually made a daughterboard for Pocket Operators: The MSL Pocket Integrator .

I can’t tell you how many times I re-read Hacking The PO while working on this. Thanks very much for the documentation!

This board fits snug against the back of the PO and presses into the 12 contacts with pogo pins, so it can draw power and monitor the Play LED. It runs GPIO pins from the daughterboard MCU to all the programming pads, so it ought to be able to flash a new firmware. It can also power the PO from USB .

I would love to see an open-source PO firmware project exist. I hope this board would make it easier. Do you really think the code you were working on is un-salveageable?

3 Likes

Hey, your project is very neat! What model of daughter board you are using there? Is it actually generating some sounds and feeding them into the PO input?

I will search for the source code for my firmware and see if the tool chain is still available to compile and install it. It may be worth uploading whatever I have to GitHub, but as I said before, it is a long way before it can turn it something interesting.

Btw, I’m glad http://hackingthepo.weebly.com was useful to you!

2 Likes

Thanks! This revision uses a Teensy 3.2, but in the next revision I’m going to move the MCU directly onto my board. And yes, it’s generating an audio signal (the maraca sound) and a sync signal & sending those to the L and R inputs of the PO, which is in sync mode 4. (I sure wish I could send sync without that little cable, but I don’t see how.)

IMO, the really amazing thing for open-source firmware would be if the Pocket Operator could be programmed from the Arduino IDE. Then all sorts of hobbyists would be able to hack on it. Other toolchains are totally legit, but they don’t have nearly the user base.

I’m really curious about what tools & libraries you tried out. I’ve been thinking a lot about what the architecture would be for a real-timey device like the PO on a microcontroller. My board is like a baby version of that – there’s various tasks that have to be performed at various rates, some have to happen in interrupts & others don’t. There’s audio, accelerometer, button presses, blinking lights, USB events. At the moment I use interrupts for audio & IMU updates and handle all the rest in a single main loop, and performance is pretty good. I can see how the right RTOS could make everything conceptually easier, but they all seem to add a ton of overhead. And there’s so many options, I don’t really know how to pick one.

I feel your pain, I had the same doubts when I started developing my PO firmware. I did some research on the performance aspects and was not convinced that a main loop would be significantly faster than using an RTOS, so I ended up choosing the later to be more productive. I was very careful with the number of tasks and queues though. I opted for Keil RTX since it was backed by Silicon Labs at the time, but I think that is not the case anymore. In fact, if I ever restart working on that project, I may need to change it.

The Teensy is a super nice platform, with a good sound library support. I haven’t look in detail at the projects that use it, but that may be a good way to decide. I would check in special the Dirtywave M8.

1 Like

It seems to me that the decisions about what tasks to have, their frequencies & priorities and how they communicate with each other, those are really the important architectural questions. The choice of timesharing scheme should flow from that.

I wholeheartedly endorse the Arduino environment in general and the Teensy hardware specifically! I’ve used them for a lot of projects. Paul Stoffregen, who makes Teensy boards, is a major contributor of open-source code to Arduino and also does a great job supporting the Teensy, along with a big and very helpful user community.

Arduino started out as a hobbyist thing, but at this point it just seems to have the best libraries & best support. Every time I’ve looked at commercial AVR-based or ARM-based libraries, I’ve wondered why I would bother with them. Arduino libs are open-source, tested, documented, and have users you can find and ask for help. Those are all priorities for me.

But the Arduino coding philosophy is all about the bare-metal. The majority of the existing libraries are not thread-safe & therefore incompatible with many of the RTOS options out there. I think the keep-it-simple philosophy of Arduino started for pedagogical reasons, but I actually find it very powerful.

That DIrtywavve M8 looks cool! I’m not really a tracker user, but I guess Little Sound DJ had a really special interface.
I’ve seen Teensys in a couple of different Eurorack units as well.

1 Like

I suspect that TE has used a main loop to implement the PO firmware. I think I got that idea from 1KHz scan rate for the LEDs, which seems rather high to me. As you said, there is no question about that approach being the most straightforward and the best performance wise. I think RTOS is the “sophisticated” way of doing things, but that may not always justify itself. One reason I choose that way was to learn it. I also had to spend a lot of time configuring the EFM32 peripherals, like DMA, interrupts, power management, etc. It was very challenging. At the end I started asking myself of better ways to spend my time. I recently did a small Arduino powered project for my wife that teaches at elementary school, it was surprisingly easy to put together. I’m currently contemplating doing an iOS sequencer app.

Btw, why did you choose to pair your device with the PO? You are basically just drawing power from it. Why not do something standalone with a similar form factor?

1 Like

Fair question! Mostly I just love the PO. There was a year when I wore it around my neck everywhere I went, making beats on the bus and the tram. I was always wanting to sync my beats with other musicians and other things I was listening to, but that’s pretty much impossible without a tap-tempo button. I went down the rabbit hole looking at how tap-tempo was implemented in all the other gear I & my friends owned, and everything they’d let me touch at music stores, and eventually I decided everybody was doing it wrong. =)

I could have made some kind of standalone digital maraca/baton, but I think pairing it with the PO makes the concept more concrete. I’m really hoping that PO owners will see this and immediately get what it is, what’s cool about it and want to try it. I just had a booth at SUPERBOOTH 21 in Berlin, where I showed off the prototype, and the response I got from PO owners was 100% that. So I’m pretty excited to try the crowdfunding route & make a bunch for people.

And also … from the first time I read your PO docs and saw the interface, I’ve had a little dream about reprogramming a PO, making it an open platform. It’s such a lovely piece of interface, but there’s all these features I would add to it. I just haven’t taken all that on yet. But this board is a step in that direction.

But I’ve never actually flashed the firmware in a PO, even just to brick it. Have you?

1 Like

Yes, I flashed my firmware using an EFM32 Starter Kit board and a custom made flash cable with pogo pins. I was able to drive the display segments and LEDs, read the keys and generate sounds from a wave table. I then experimented with adding a flash memory chip to the PO to be able to work as a sampler, but did not finish that.

You can’t really brick the PO, but flashing a new firmware is an irreversible process, you loose the original firmware forever.

There is a Silicon Labs application note with source code for a flash programmer, but it runs on an EFM32 chip, not the Teensy, so it may require some tweaking to work.

Also, one of the PO interface pads can be used as an I2C interface to talk to the Teensy at 1MHz with a custom firmware. That may be fast enough to stream audio from the Teensy to the PO, removing the need for that patch cable you are currently using and also using the Teensy as for sound synthesis and the PO mainly for the display, keys and codec. You can always dream… :slight_smile:

1 Like

Hi Punji,
I’ve poured over your Hacking the PO research you’ve done and your journey on here. Very impressive. You wrote “Note that the original firmware will stop the code and turn on (full bright) key number 2 LED in case the codec initialisation fails.” This is the case with my po-12. Is there a way to come back from this? I tried factory reset. Is there a way to use the reset pad on the back to restore it?

Hi, are you sure it is not a weak battery? If you already covered that then, unfortunately, it is unlikely that you could fix it. It may be a fault IC or just some pad with a bad solder, but you can’t even check it because the components are all under the display. Sorry.

1 Like

Yes. Fresh batteries were used. I was afraid of that. I guess it’s a parts unit now. I really do appreciate all your research and experience you’ve shared.

Hey @punji , just to let you know that the vulnerability was found, and was used to disable the lockbit on the EFM32: Enter the EFM32 Gecko - LimitedResults . I’m planning to reproduce this on my POs and dump the firmware, but as I’m not sure if I’ll succeed, thought of letting you guys know if anyone wants to try. keep hacking xD

Hi, thanks for the heads up. I was aware of that exploit but for a different ARM silicon. Dumping the firmware would open up some interesting possibilities indeed…

I guess the first step here is getting access to the DECOUPLE pin, please let me know if you have any progress with that.

It seems to be the larger capacitor at the top right corner of the EFM32 chip. Look at the picture at the top of the page here:

Hacking the PO

The bottom pad seems to be connected to the DECOUPLE pin.

Cool! I’m very interested in the exploit caioluders mentioned and would love to see it work. The LR page wasn’t the most descriptive so I’m still not quite sure I understand fully. I understand he used EMFI but is it just targeted at flipping the bit for the debug protection? The article had a lot of great info but wasn’t very forthcoming about the positioning of the EMF generator.

On a semi-related note, I’ve been trying to map the LCD pins on the PO-33. I read an earlier reply about someone using a function generator app; I’ve been trying to do the same but haven’t had any luck.

I’m using a stereo plug with the ground terminal hooked to GND on the PO and a 2.8Vpp 50Hz square wave with one channel 180 out of phase, and probing the COM and segment pins with the L & R channels. As I understand it the LCD is passive so the PO doesn’t need any power right? In other words, the square wave should be enough to power the LCD right?

Thanks for the thoughts!

1 Like

Hi, that’s right, you should NOT power the PO. I don’t think you should connect the GND either, just make sure the L/R channels are really out of phase and the signal has some reasonable voltage level, 2V minimum.
