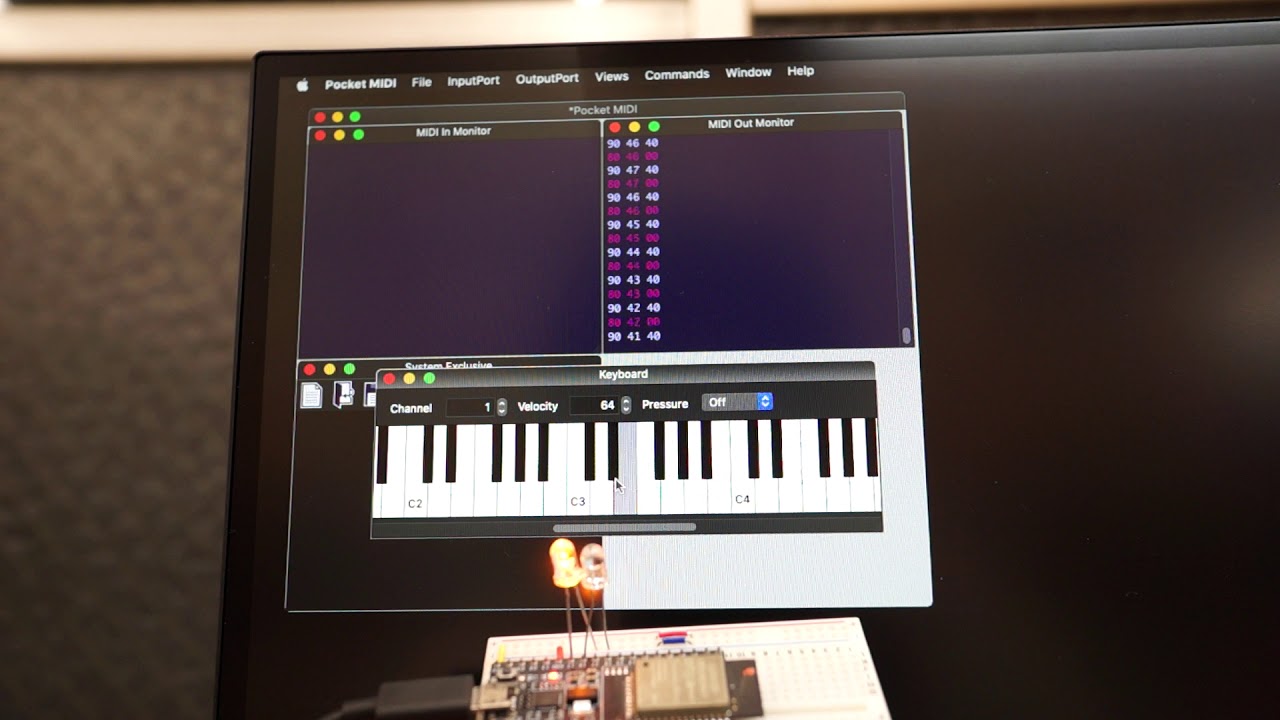

i dont have code for MiDi wired to ESP32. in my demonstration i wire LEDs directly to the MiDi jack and it blinks when ever there is a midi signal. (set only track 1 and 2 to output MiDi).
you can try it your self, take a midi jack and press LED to tip and mid.
where are examples of code online, how to add wired midi to ESP32, but than still, you have to code all the functions. I never took that direction🤷♂️
so for wired connection i recommend my CVmultipleXed code.
i advise you to wire the out put to an infrared remote of your LED-strip, and it will trigger buttons.
I can not share my code for bluetooth MiDi just yet. im working with other people on this project right now(adding velocity and CC, optimizing fast polyphony). i will let you know when its finished
how ever , here is something to inspire you:
his code in the video description, give him a like .
its a very basic code, but it will get you up and running
Good stuff @FunkyJunky I have a few projects in mind at some point, I have some ESP32, BBC microbit, and a rpi pico, if I ever get around to doing anything I will post it in here.
thanks darenger
i think you might me on to something with micro bit !

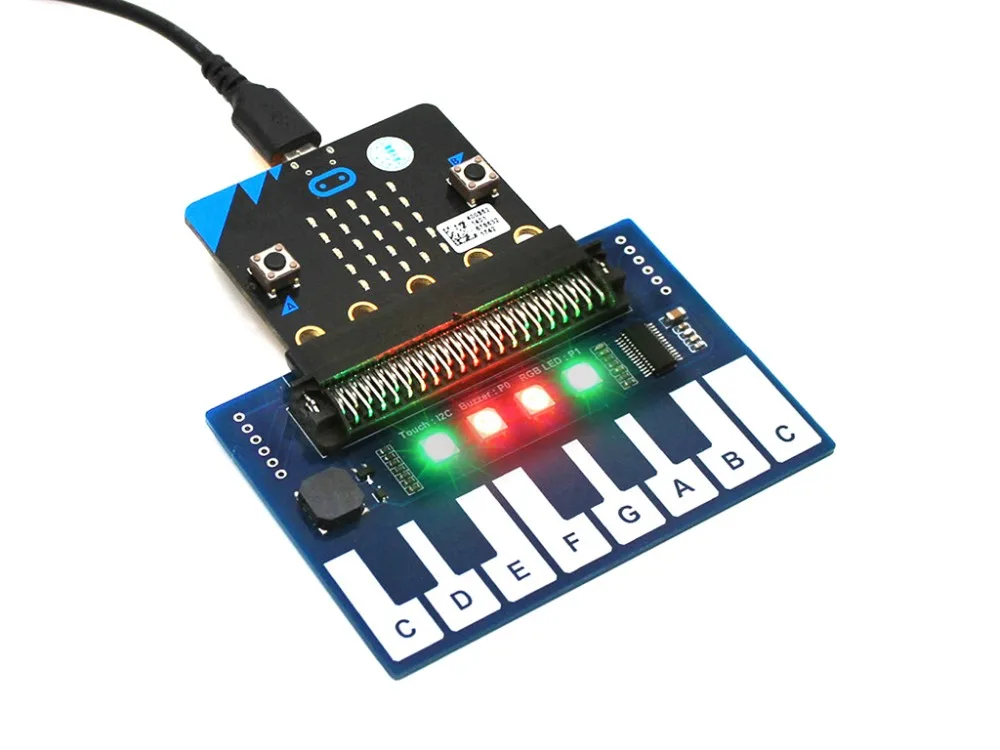

unlike arduino IDE and ESP32, its easy to code, and it has already necessary MiDi frame work built into its SDK. i encourage you to try it out with MiDi. share your results, im very interested !
maybe wireless controller for op-z or even po
…ehh i wish i had micro bit, this looks fun :
in this set up it analyzes sound output (mono), it possible to rewire to analyze the sound input. if you set it in stereo mode you can wire it to
show input and out put .

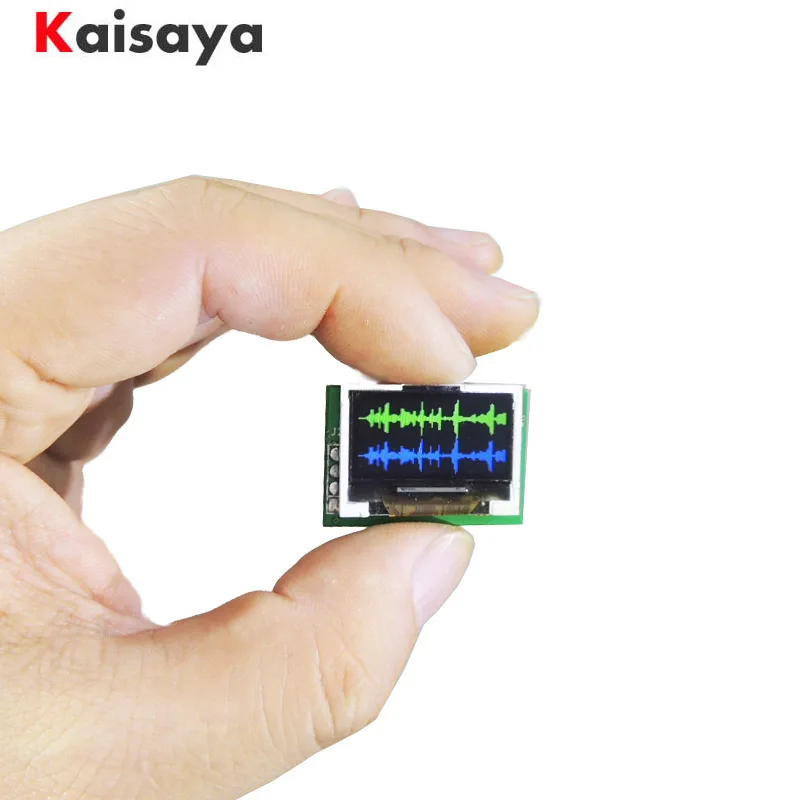

its a simple module, no codling required. easy to power, plug and play you can attach power-in as well as audio-in from these pins
i can only use this setup with headphones or external seakers. because po thinks its always plugged into headphones. how ever it possible to change.
maybe with more twicking its possible to add support for analyzing input as well as output.
make sure to attach positive and negative correctly, mistake in connection has eventually killed this po
or
just google this thing, internet is full of them
maybe audio lvl is not the most practical thing to monitor, but its very bright and adds to the show factor.
on the back is a sync button, indicator LED, and optocouplers logic gate, provides 6 outputs.
no battery, powered by op-lab MiDi connector.
fully covered in transparent resin, waterproof.
so its basically plug and play !
it looks like a squid
and it can sync to multiple receivers.
for testing purposes i have connected outputs to LEDs, but output can be attached to anything (relay, po,…)
demo in sequence:

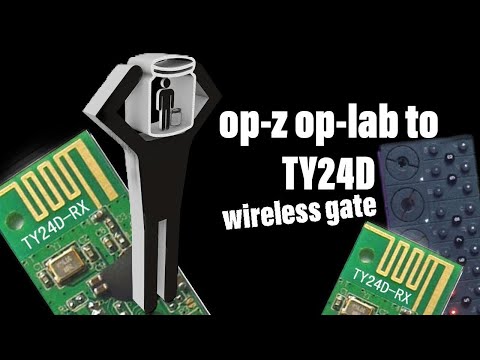

I have made a 6 outputs receiver for TY24D transmitter. https://s6.gifyu.com/images/736E875B-5B91-4419-9B94-766D68C3AA27.gif
outputs are (6w 12v) led units, that produce a crazy amount of light. one unit is as bright as 5m led-strip. i have only 3 led units (have to order more).
output can be live or sequenced. track 14 control channel. output triggers are knobs 1,2 and note on/off.
…works with a 3v lipo with built in bms and usb c (charge, discharge and pass true)
components are covered in a resin that changes colors when temperature changes.
thank you Bichuelo i do want to encourage people., but its got a bit frustrating, so lesson learned;)
——————————————————————
hidden controls
if you send this code F000207601060601401F1FF7 via midi into op-z, a strange perimeter interface will be activated.
its some kind of global FX perimeter that changes pitch of some channels.
its kinda fun to make live glitches, but it can not be sequenced.
i have configured key C4 to trigger this code when pressed.
i think this function is part of fx track(13), but instead of punch in effect it gives knob values to play with. this is not tape track.
does anyone know what it is or did i miss something in the user manual ?
…
update:
F0002076010600401F1F00F7
this code will switch back into normal mode.
i have mapped this code to trigger when key D4 is pressed.
BACKUP YOUR PROJECTS, these perimeters are not user friendly and may affect EVERY project at the same time.
…trying to brute force code for REC button toggle…
so far this is just a concept
but attacking TY24D to gate of op-lab offers some cool functionality. you can play it like a stylophone or a guitar. have track6 repeating same note when trig, and track12 to modulate the note.
you can ground it to the strings of a real guitar and play with a metal pick, and maybe set beat track into trig mode so that when you hit snares of your guitar the beat will progress…
i dont recommend using 3D printing or CNC for this. it took me 6hours to brain storm, design and put together this whole thing. using any type of CAD would have taken 2 days, measuring, slicing and twicking hardware. probably would have lost interest in finishing the project on day1,5
… also its very fun to combine this system with other tricks, like motion track, dmx, photomatic, midi out and more.
i dont think i need playdate anymore
i dont have technical drawings for this project.
ice cream sticks are great for consistent size parts.
im sure this mechanism can be improved and can be executed in many ways.
.
or even po
:
make sure to attach positive and negative correctly, mistake in connection has eventually killed this po
BACKUP YOUR PROJECTS, these perimeters are not user friendly and may affect EVERY project at the same time.
neodymium magnet inside, to hold metal pick while in idle.
